ATESS

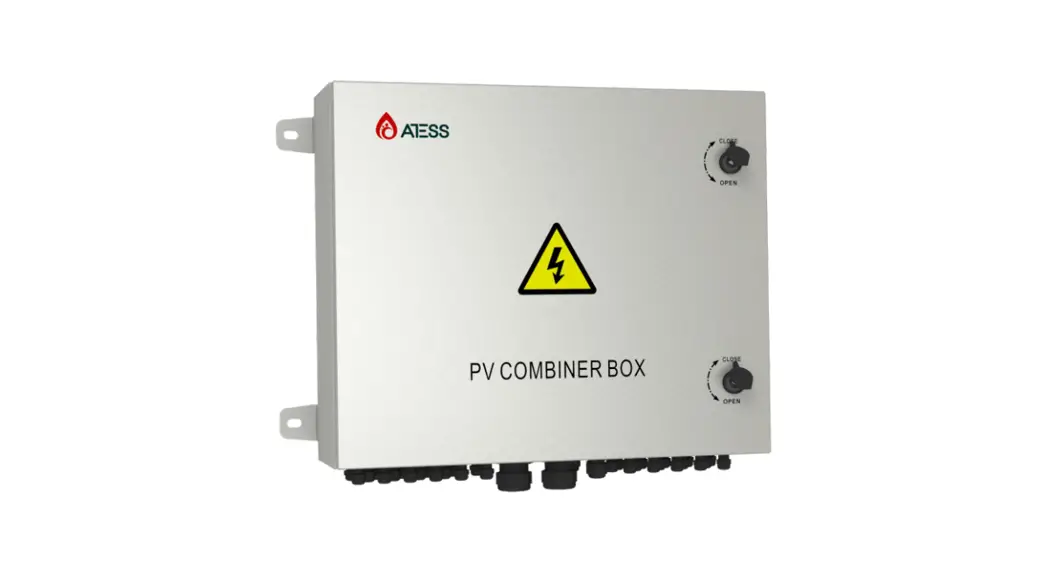

Atess 16 String PV Combiner Box with string monitoring

Atess 16 String PV Combiner Box with string monitoring

R 17,853.00 ZAR
R 17,853.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

ATESS 16 String PV Combiner Box with string monitoring

Overview

The ATESS PV combiner box is a valuable accessory for connecting multiple PV strings. It is equipped with a smart controller built-in for monitoring. Additionally, it offers comprehensive protections, including a fuse and Surge Protection Device (SPD).

Features

  • Lightning Protection: Ensures the safety of the device in the event of a lightning strike.
  • Optional String Monitoring Function: Allows optional monitoring of string inputs.
  • IP65 Environment Compatibility: Ensures the device is dust-tight and protected against water projected from a nozzle, making it suitable for various environments.
  • Flexible Design: Offers 8 or 16 optional inputs, allowing adaptability to different system requirements.
  • Input Fuse for Overcurrent Protection: Protects the device from excessive currents by breaking the circuit when the current exceeds a certain threshold.
  • RS485 Communication Interface: Allows serial communication between devices, providing remote monitoring and control capabilities.

Specifications:

Input DC

  • Max input voltage:
    • ATESS PV-CB16M: 1000V
  • Max string Isc: 10A
  • Number of input strings:
    • PV-CB16M: 16
  • Input fuse: 1 on the negative and positive pole of each string, 15A, 10*38mm
  • Input cable gland: 4mm – 8mm cable diameter
  • Input cable terminal: 4mm² – 6mm²

Output DC

  • Number of output: 1
  • Max output current: 160A
  • Output breaker: 200A
  • Output cable terminal: 50mm²
  • Output cable gland: 13mm-18mm cable diameter

General Information

  • Dimension (W/H/D): 700/640/192mm
  • Weight: 25kg
  • Enclosure material: Galvanized steel
  • Degree of protection: IP65
  • Operating temperature: -25°C~55°C
  • Humidity: 0-99%
  • Altitude: 2000m without derating
  • Lightning protection: Type II
  • Cooling: Natural convection
  • Mounting: Wall-mount

Monitoring

  • Parameters: String current, string voltage, breaker status, surge arrestor status, internal temperature
  • Power supply: DC300V-1000V
  • Power consumption: 14W
  • Communication: RS485
