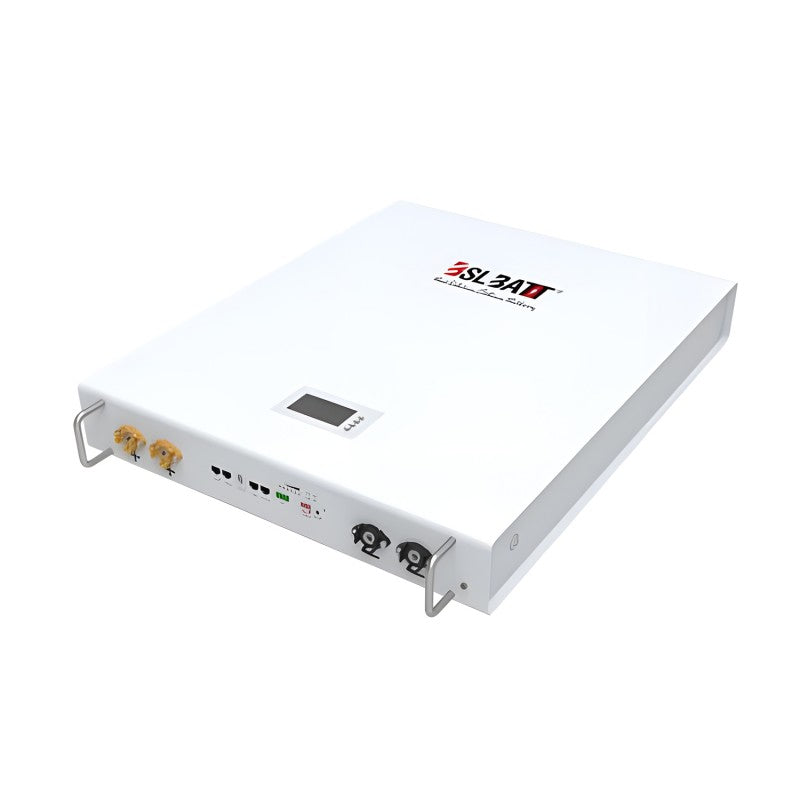

BSL Battery 51.2V - Powerline 100Ah (5.1 KWh) Wall Mount

PowerLine is an ultra-thin wall-mounted battery that can be mounted directly to the wall with a simple snap-in installation.
The battery modules utilize FPC technology to ensure more consistent quality and are certified by UL1973 to deliver up to 98% efficiency.
In addition, this product can be cycled 6000 times at 100% DOD and still have 80% capacity. The battery can last up to 20 years for optimal performance and cost savings.

Features

- 3C peak value
- Up to 81.9 kWh in Low Voltage Connection
- Real-time monitoring system and remote debug
- Non-toxic and non-hazardous cobalt-free LFP chemistry
- Extended operating temperature -20°C to 60°C
- The thinnest Home ESS ever built with just 90mm thickness
- Certification: IEC62619, CE, UL1973, UN38.3
- The exceptional lifespan of up to 8000 cycles
- Cycle one to several times per day
- Extended warranty of up to 15 years

Application

- Back-up power
- Self-consumption optimization
- Off-grid power supply

Specifications

- Model: PowerLine 5
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Compound Mode: 1P16S
- Charging Voltage: 58.4V
- Charge Current: Continuous Charging: 50A, Maximum Charge: 100A
- Discharge Current: Continuous Discharging: 100A
- Factory Voltage: 50.4V - 53.6V
- Self-discharge Rate: ≤ 2.5% per month
- Mode of Equilibrium: Passive Equilibrium
- IP Level: IP22
- Temperature of Charge: 0°C to +65°C
- Temperature of Discharge: -20°C to +65°C
- Dimensions: 670mm x 540mm x 90mm ±1mm
- Weight: 50kg ±1kg
