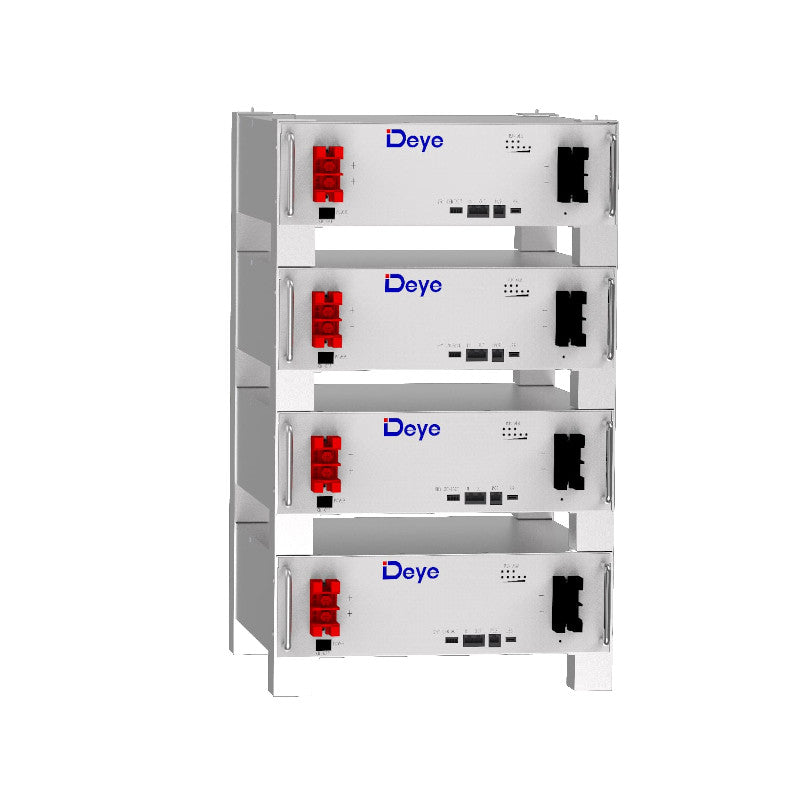

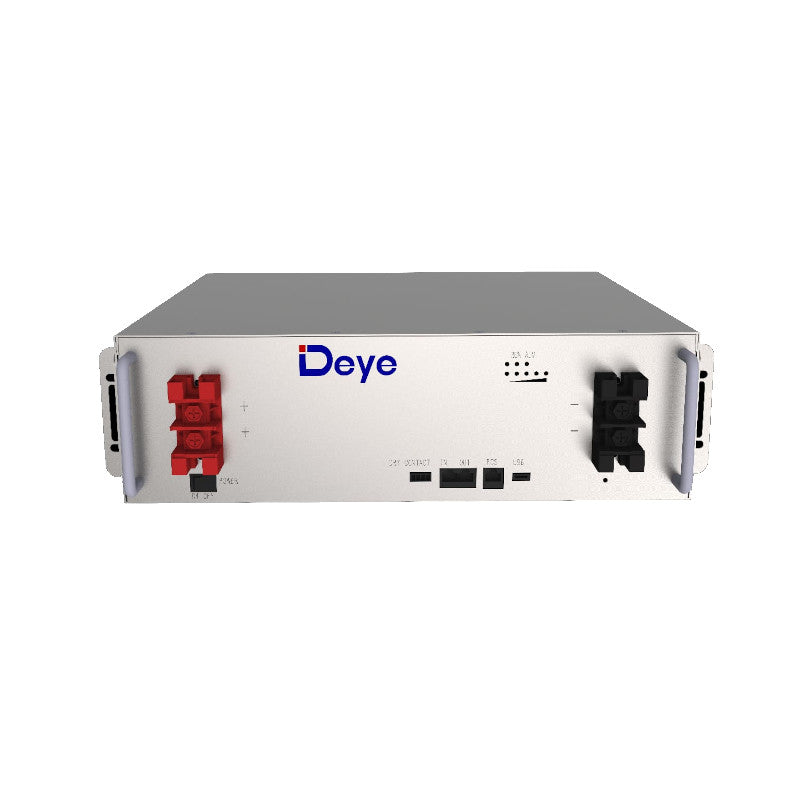

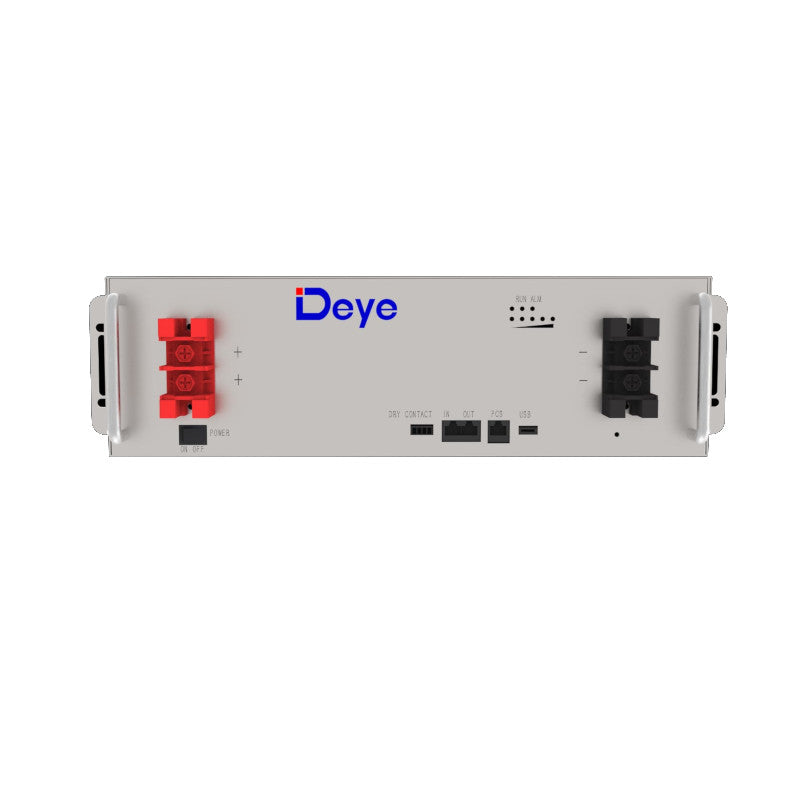

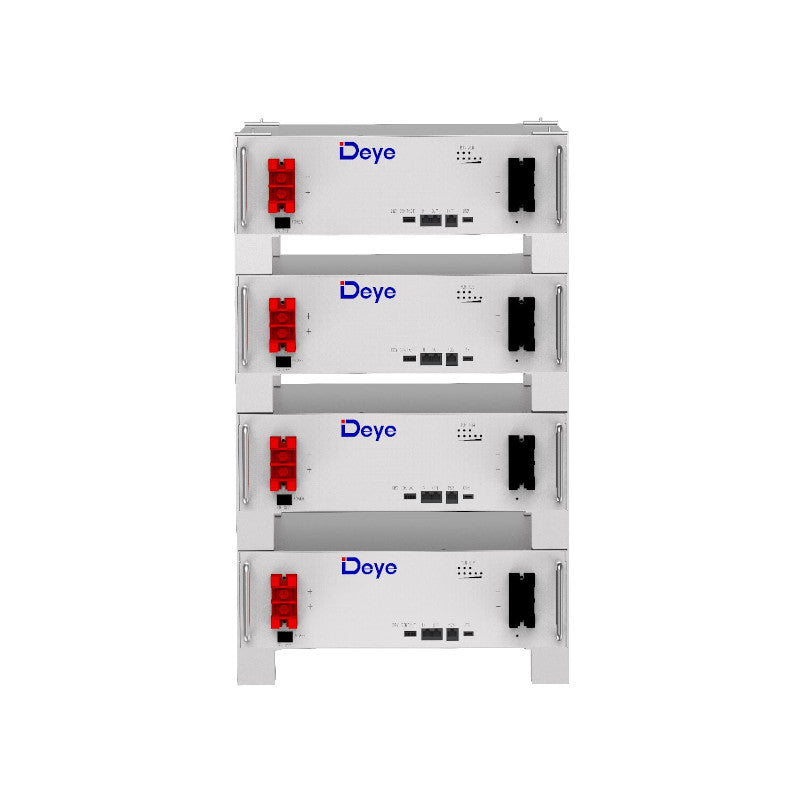

Deye 5.32kWh Lithium Battery | SE G5. 3

Deye 5.32kWh Lithium Battery | SE G5. 3

R 24,999.00 ZAR
R 24,999.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849



Datasheet

  • Battery Chemistry: LiFePO4
  • Battery Module Capacity (Ah): 100Ah
  • System Nominal Voltage (V): 51.2
  • System Operating Voltage (V): 43.2~57.6
  • Scalability (Max.in 1 battery group): Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup)
  • Energy (kwh): 5.12kwh
  • Usable Energy (kwh) : 4.61kwh
  • Charge/Discharging Current (A): Recommend: 50, Max: 100, Peak (2 mins, 25℃): 150
  • Depth of Discharge (%): 90%
  • Master LED Indicator: 5LED (SOC: 20%~100%), 3LED(working, alarming, protecting)
  • IP Rating of Enclosure: IP20
  • Altitude : ≤2000m
  • Working Temperature: Charge: 0~55°C/Discharge: -20~55°C
  • Storage Temperature: 0°C ~ 35°C
  • Humidity: 5%~95%
  • Cycle Life: ≥6000@25±2℃,0.5C/0.5C, 80%EOL
  • Installation Location: 19-inch standard cabinet, cabinet depth 600mm / with rack
  • Communication port: CAN2.0, RS485
  • Warranty: 10years
