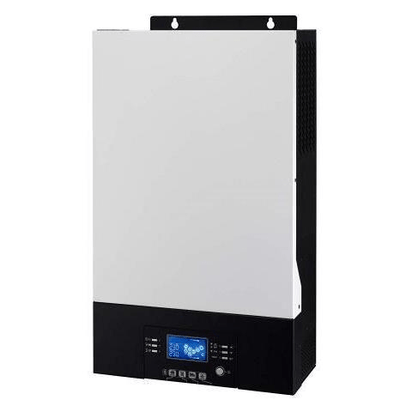

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter

Mecer Axpert 8K 8kVA/8kW Hybrid Pure Sine Wave Inverter

R 22,899.00 ZAR
R 22,899.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

    • Features

    • Customisable status LED bar with RGB breathing lights.
    • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
    • Supports USB On-the-Go function.
    • Reserved communication port for BMS (RS485, CAN-BUS or RS232).
    • Replaceable fan design for ease of maintenance.
    • Battery independent function.
    • Enhanced AC/Solar charger to 120A.
    • Built-in anti-dust kit.
    • Parallel operation up to 6 units.

    •

      Specifications

    • Model: SOL-I-AXMAX-8K48V.
    • Rated Power: 8000VA/8000W.
    • Parallel Capability: Yes, 6 units.

    • Input

    • Voltage: 230 VAC.
    • Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
    • Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

    • AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
    • Efficiency (Peak): 90% ~ 93%.
    • Transfer Time: 15 ms (For Personal Computers), 20 ms (For Home Appliances).
    • Waveform: Pure sine wave.
    • No Load Power Consumption: <70W.

Efficiency

    • Battery Voltage: 48 VDC.
    • Floating Charge Voltage: 54 VDC.
    • Overcharge Protection: 66 VDC.
    • Solar Charger & AC Charger

Solar Charger Type: MPPT.

  • Maximum PV Array Power: 8000W (4000W x 2).
  • MPP Range @ Operating Voltage: 90 ~ 450 VDC.
  • Maximum PV Array Open Circuit Voltage: 500 VDC.
  • Number of MPP Trackers: 2.
  • Maximum Solar Charge Current: 120 A.
  • Maximum AC Charge Current: 120 A.
  • Maximum Charge Current: 120 A.
  • Physical
  • Dimension, D x W x H (mm): 147.4 x 432.5 x 553.6.
  • Net Weight (kgs): 18.4.
  • Communication Interface: USB/RS232/RS485/Wifi/Dry contact.
  • IP Rating: IP21.
