Pylontech

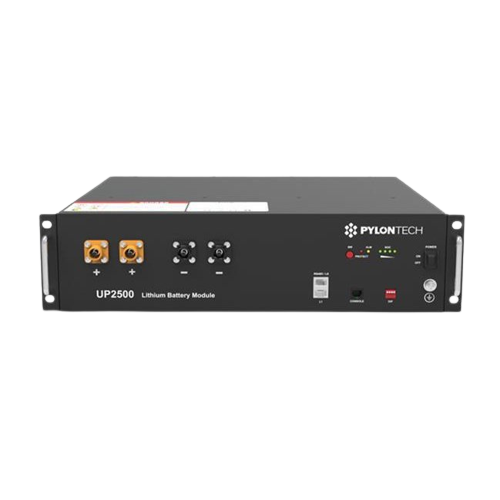

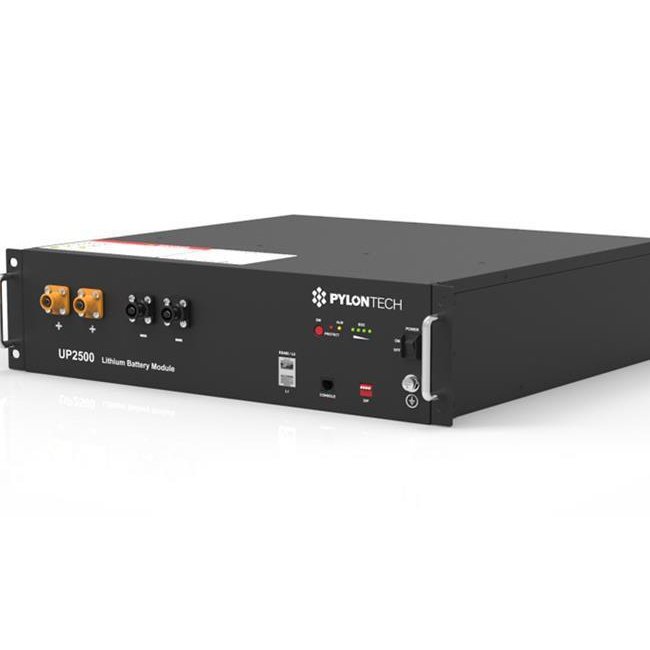

Pylon UP2500 2.84kWh Li-Ion Solar Battery 24V with CAN connection

Pylon UP2500 2.84kWh Li-Ion Solar Battery 24V with CAN connection

R 15,999.00 ZAR
R 15,999.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

  • Pylon US2500 CAN - Voltage 24V
  • Nominal Wh 2840
  • 6000 Cycles at 80%
  • The solar battery is ONLY Compatible with 24V Voltronic and 24V Victron inverters
  • Comes with CAN communication.
  • RS485 communication supports Voltronic 24V inverter
  • CAN communication supports Victron 24V inverter
  • Supports maximum 20 pcs in parallel connection
  • Key battery parameters setting:
  • Charging cut off voltage point: 28.4VDC
  • Discharging cut off voltage point: 24.8VDC
  • Recommend charge/discharge current = 55A * N (N=Number of parallel batteries)
  • Other settings are basically same as the 48V system

Important
The maximum allowed voltage is 28.8V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter.

Specifications:

  • Weight: 27 kg
  • Battery Type: Lithium Ion
  • Nominal Energy: 2840 Wh
  • Depth of discharge: 80.00 %
  • Voltage: 24 V
  • Continuous Discharge Rate (Normal Use): 1344 W
  • Maximum Discharge Rate (5 Minutes): 1344 W
  • Surge Discharge Rate (15 Seconds): 2664 W
  • Maximum Charge Rate (5 Minutes): 1344 W
View full details
