Pylontech

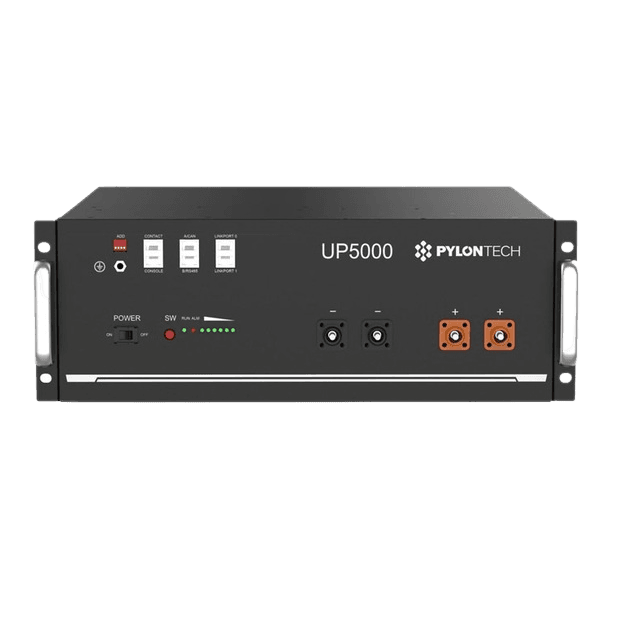

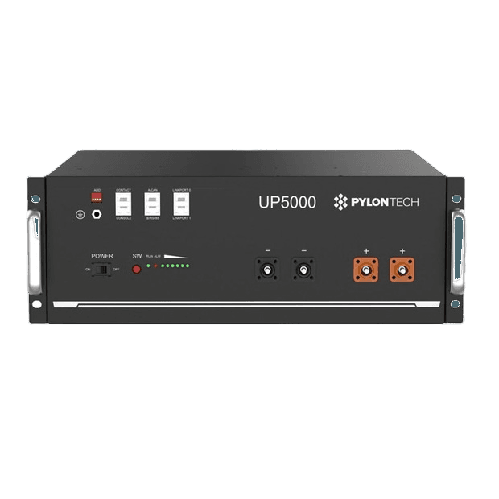

Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V

Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V

R 30,479.00 ZAR
R 30,479.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

A new battery in the UP series from Pylontech. The UP5000 is a 48V battery with incredible features to provide a competitive edge in the market.

Features:

  • Modular design for ease of expansion
  • Higher usable capacity resulting in less battery modules installed
  • Usable capacity 4 560Wh
  • Parallel Capability of up to 16 units
  • Allows for large installation of up to 72.96kWh with no LV Hub
  • Intelligent BMS protecting battery cells
  • 95% DoD with more usable capacity
  • RS485 and CAN compatible
  • Comes with a 5-year warranty non-extendable
  • Important

MAX DISCHARGE RATE IS ONLY APPLICABLE FOR +- 60 SECONDS The maximum allowed voltage is 53.5V, please ensure that you check the inverter settings are below this BEFORE plugging in the UTILITY/SOLAR to the inverter. Please ensure that you have the correct BMS cable for the correct inverter.

Specifications:

  • Weight: 41 kg
  • Battery Type: Lithium Ion
  • Nominal Energy: 4800 Wh
  • Depth of discharge: 95.00 %
  • Voltage: 48 V
  • Continuous Discharge Rate (Normal Use): 2400 W
  • Maximum Discharge Rate (5 Minutes): 3600 W
  • Surge Discharge Rate (15 Seconds): 4320 W
  • Maximum Charge Rate (5 Minutes): 3600 W
View full details
