Solis

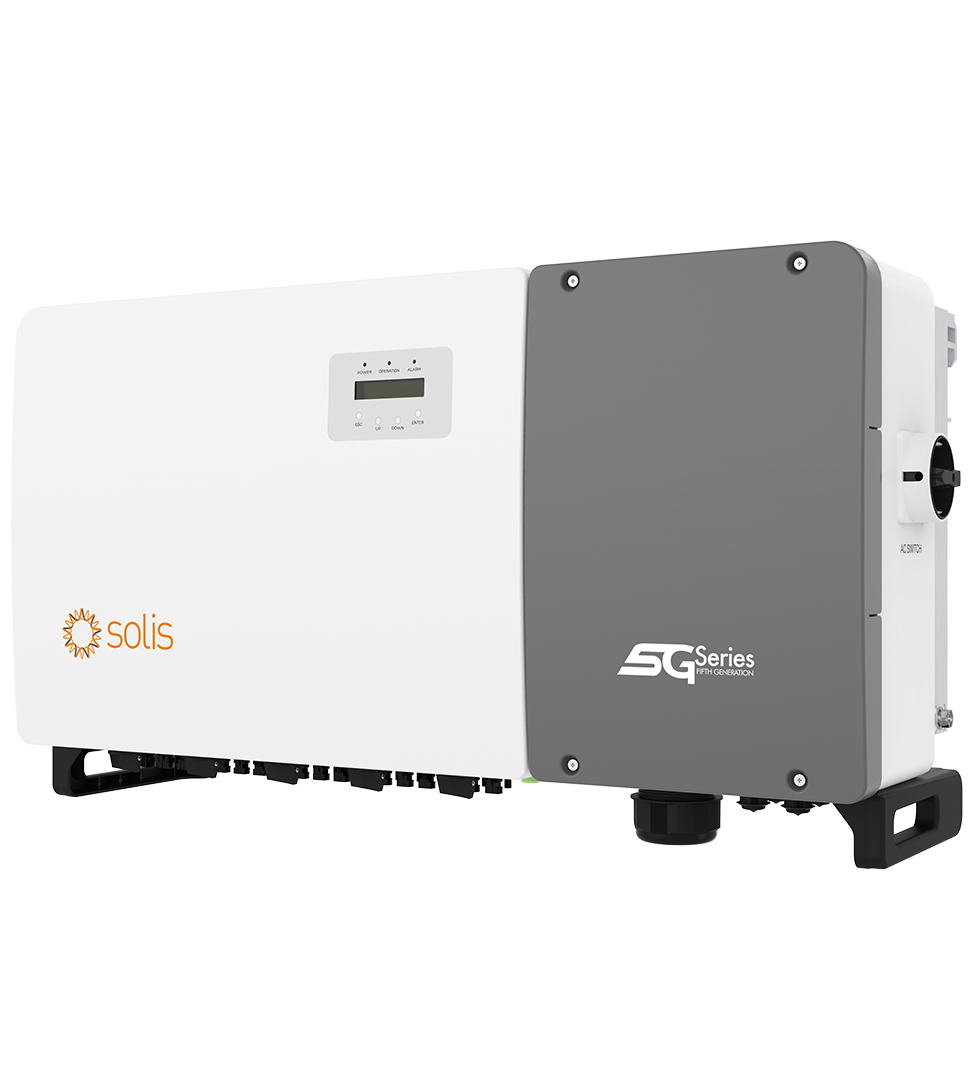

Solis 110kW 5G 3 Phase 10x MPPT - DC

Solis 110kW 5G 3 Phase 10x MPPT - DC

R 94,399.00 ZAR
R 94,399.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

Product Features
Max. 13A per string (26A per MPPT), 150% DC overloading capability
10 individual MPPT, lower mismatch loss
Efficient logic algorithm, over 99% max. Efficiency
String monitoring, shorter O&M time
Remote & local intelligent IV scan function
Leakage current repression technology
Volt-watt work mode integrated
DC input reverse alarm
Optional anti-PID function integrated
Reactive power compensation function
Integrated AFCI (DC arc-fault circuit protection)
Type ll surge protection for DC and AC

Supplier Part No: SOLIS-110-3PH-5G-DC
Weight: 94 kg
Rated Power: 110,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 195 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,000 V
Max DC Power: 165,000 W
Max AC Power (5 Minutes): 110,000 W
Surge AC Power (1 Second): 110,000 W
Max DC Current: 260 A
Max DC Inputs: 20
Has DC Fuses: 0
Connector: MC4
Included Connectors: 32
Euro Efficiency: 98.3 %
Transformer: None
MPPT Quantity : 10
Has Integrated DC Switch: Yes
Warranty: 5 years
