Solis

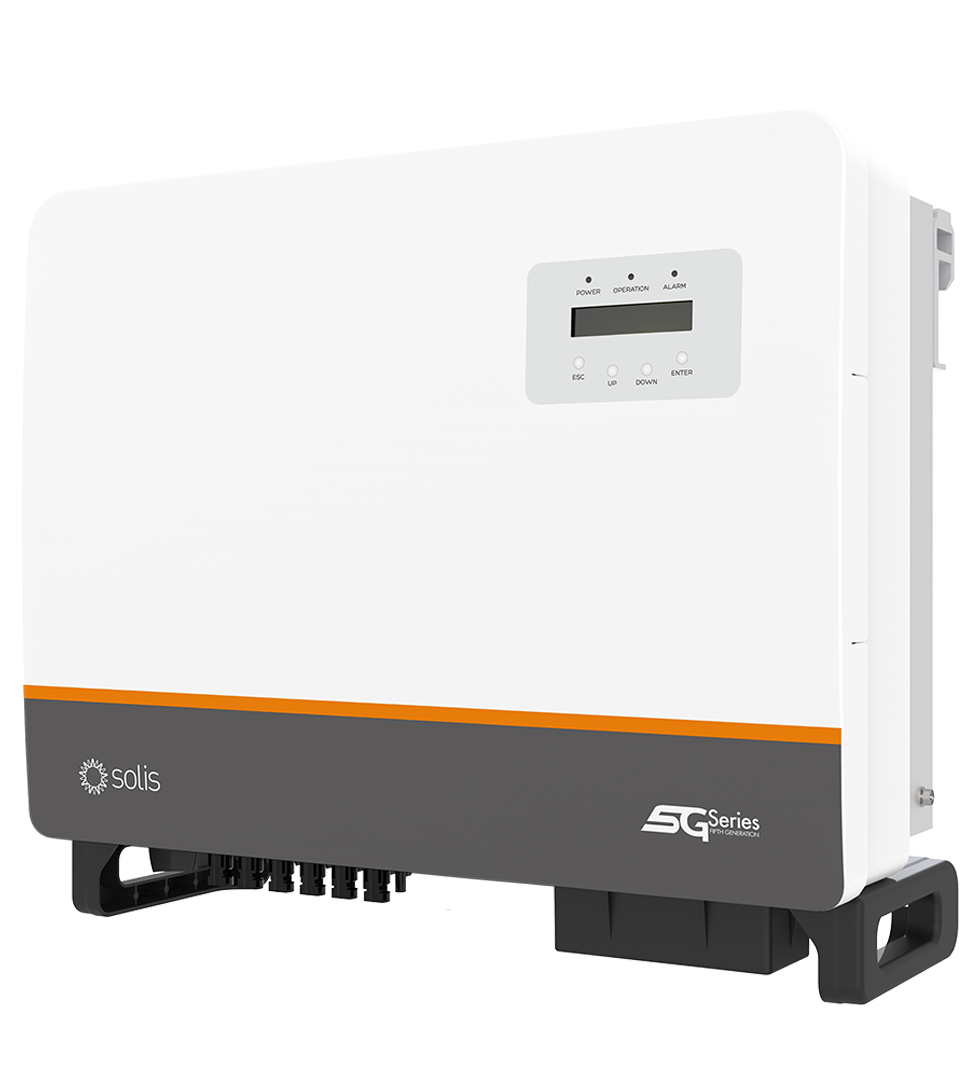

Solis 30kW S5 3 Phase Triple MPPT - DC

Solis 30kW S5 3 Phase Triple MPPT - DC

R 36,769.00 ZAR
R 36,769.00 ZAR
Sale Sold out
Tax included. Shipping calculated at checkout.

Check Stock Availability

Payment Methods

Payments are Securely processed through our payment provider PayFast, you can learn more about them HERE.

We accept the following payments:

  • Credit & Cheque cards
  • Instant EFT
  • Snapscan
  • Masterpass
  • Zapper
  • Debit Cards
  • Mobicred
  • RCS Card

We also offer an EFT option that is not through payfast.

If you are having any issues processing your payment you can view the Payfast Server status HERE or fill in the 'Contact' form / Call 067 793 6849

Product Features:
Max. efficiency of 98.5%
Type-II over-voltage surge protection for both DC and AC
Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
32A input per MPPT, 16A input for each PV string
Maximum AC output power of 33kW
3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
Intelligent monitoring, Smart I-V Curve Diagnosis
Integrated AFCI (DC arc-fault circuit protection)
IP66 Rated
DC reverse-polarity protection
5-year standard warranty

Supplier Part No: SOL-S5-GC30K-DC
Weight: 44 kg
Rated Power: 30,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 45,000 W
Max AC Power (5 Minutes): 33,000 W
Surge AC Power (1 Second): 33,000 W
Max DC Current: 96 A
Max DC Inputs: 6
Has DC Fuses: 0
Connector: MC4
Included Connectors: 12
Euro Efficiency: 98.1 %
Transformer: None
MPPT Quantity : 3
Has Integrated DC Switch: Yes
Warranty: 5 years
