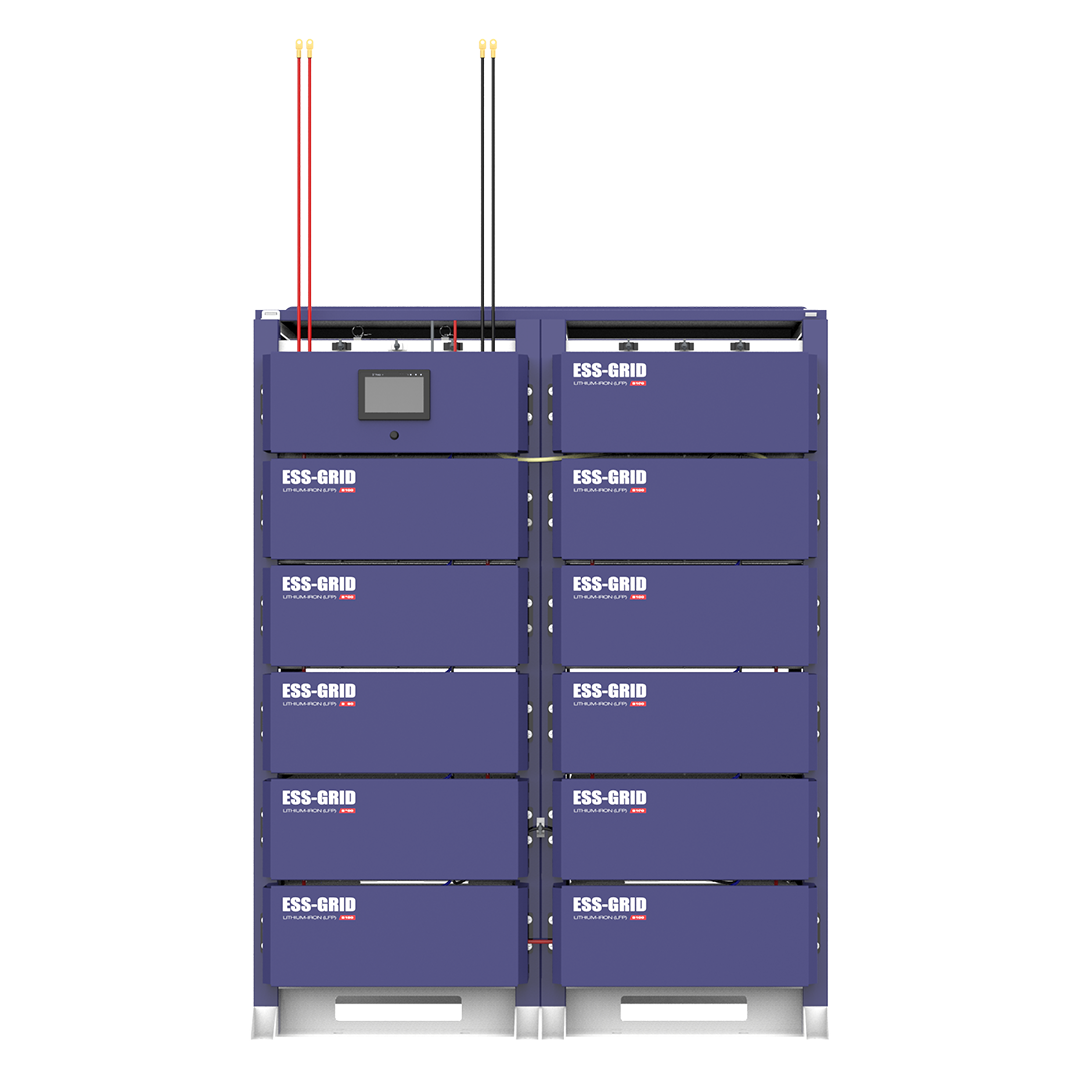

BSL HV ESS Blue Rack B105 (104.9kWh)(548V-448V)

The BSL HV ESS Blue Rack B105 is a high-capacity energy storage system tailored for commercial, industrial, and microgrid applications. Whether for on-grid or off-grid use, the B105 delivers exceptional performance in peak shaving, energy shifting, backup power, and load management. Its modular design, combined with ease of installation and scalability, ensures it meets the evolving energy needs of businesses and communities.

Specifications:

• Model: B105
• Energy Capacity: 104.9 kWh
• Nominal Voltage: DC548V
• Operating Voltage Range: 400V – 548V
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Number of Modules: 10 battery boxes + 1 high voltage box
• Rated Charge Current: 205A
• Rated Discharge Current: 205A
• Peak Current: 410A (for 10 seconds at 50% SOC, 25°C)
• Operating Temperature (Discharge): -20°C to 55°C
• Operating Temperature (Charge): 0°C to 45°C
• IP Grade: IP20 (indoor installation)
• Dimensions: 1012mm x 720mm x 1943mm (±2mm)

Key Features:

• Strong Overload Capacity: Handles shock loads and inductive loads effortlessly.
• Flexible Networking: Compatible with PCS energy storage converters and adaptable to various configurations.
• Plug-and-Play Installation: Standardized interfaces for seamless setup and easy maintenance.
• Scalable Design: Expandable to up to 16 clusters for larger systems or future growth needs.
• Versatile Applications: Ideal for microgrids, backup power, renewable energy systems, and peak load management.

Applications:

• Peak Shaving and Time-of-Use Management
• Energy Shifting and Renewable Energy Storage
• Off-Grid, Microgrid, and Backup Power Systems
• Virtual Power Plants (VPP)
• Industrial, Agricultural, and Remote Community Installations
